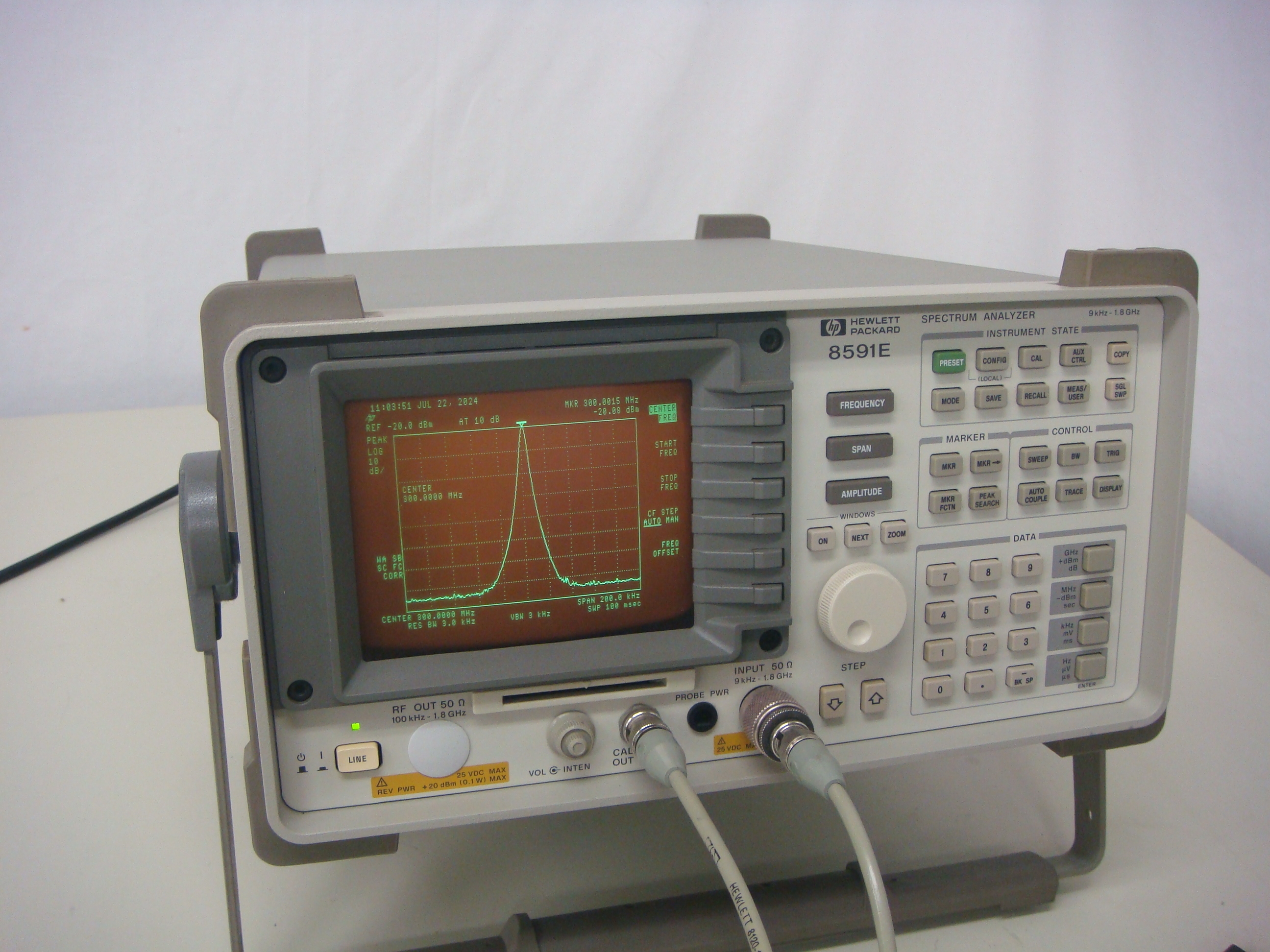

HP
8591E /041 1800MHz Spectrum Analyzer
275,000円(税込)
- 仕様
-
9KHz-1800MHz Span10KHz-1.8GHz Sweep 20ms-100s Input 50ohms N-conn -115-+30dBm Max1W(cont) DC25V
Noise<-115dBm Sprious 2nd -70dBc 3rd -70dBc
res1KHz-3MHz Video 30Hz-1MHz
Display 0-70dB 8div 0.1-20dB/div Lin dBm,dBmV,dBuV,V,W Marker

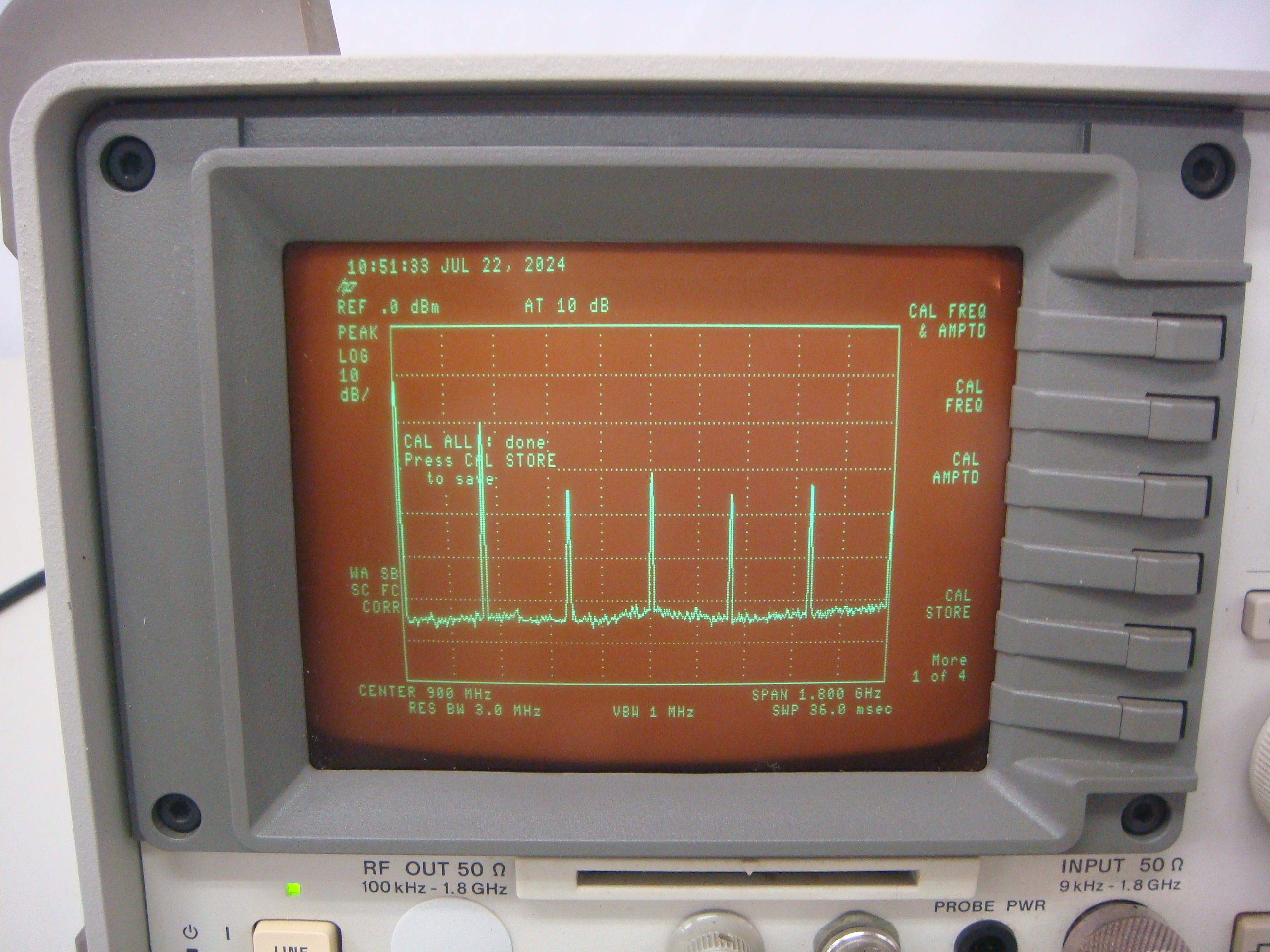

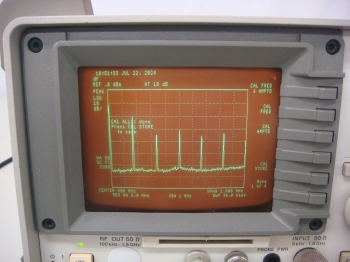

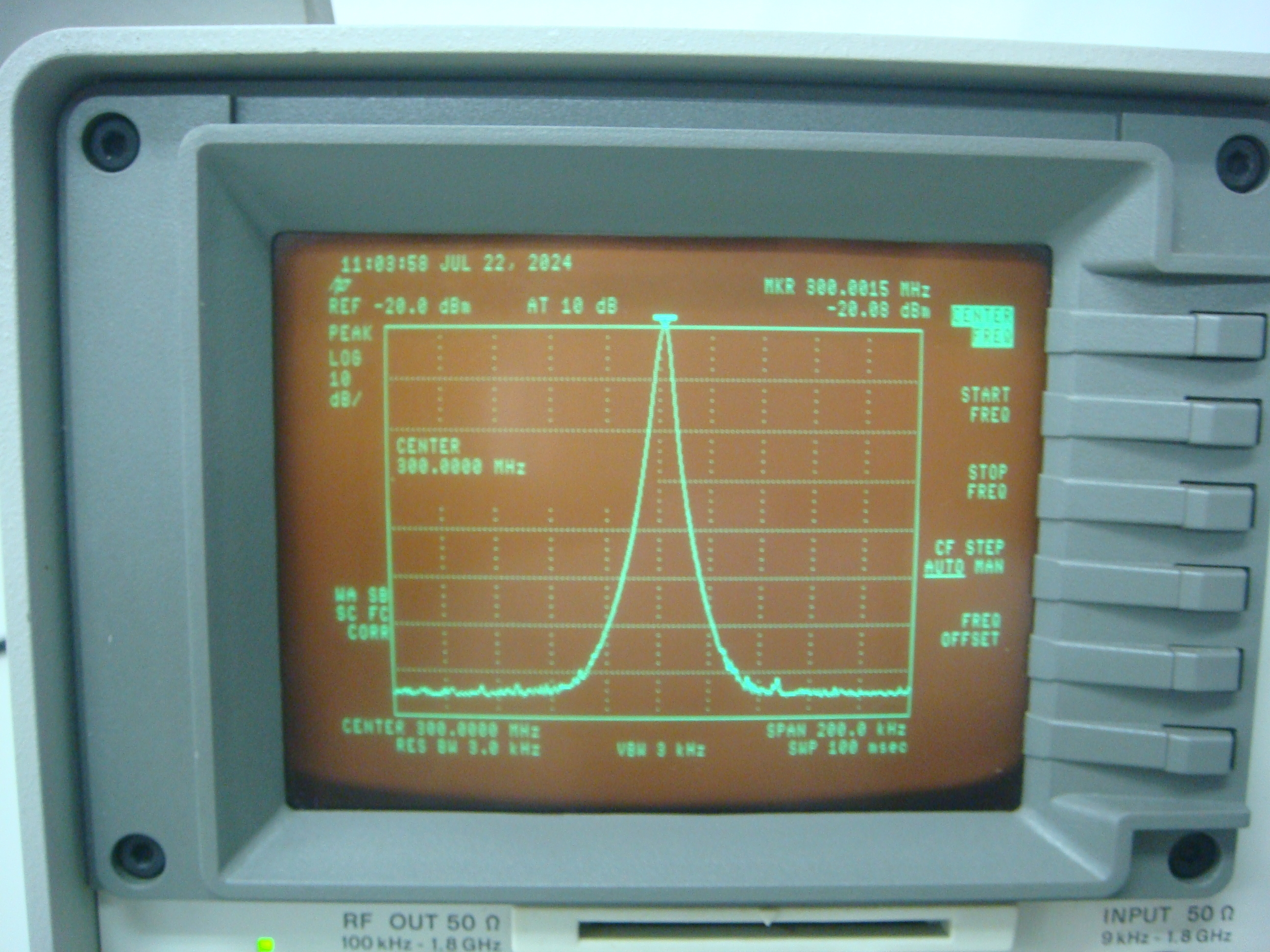

Reflevel-115-+30dBm acc0.5dB Calout 300MHz -20dBm ATT 0-60dB

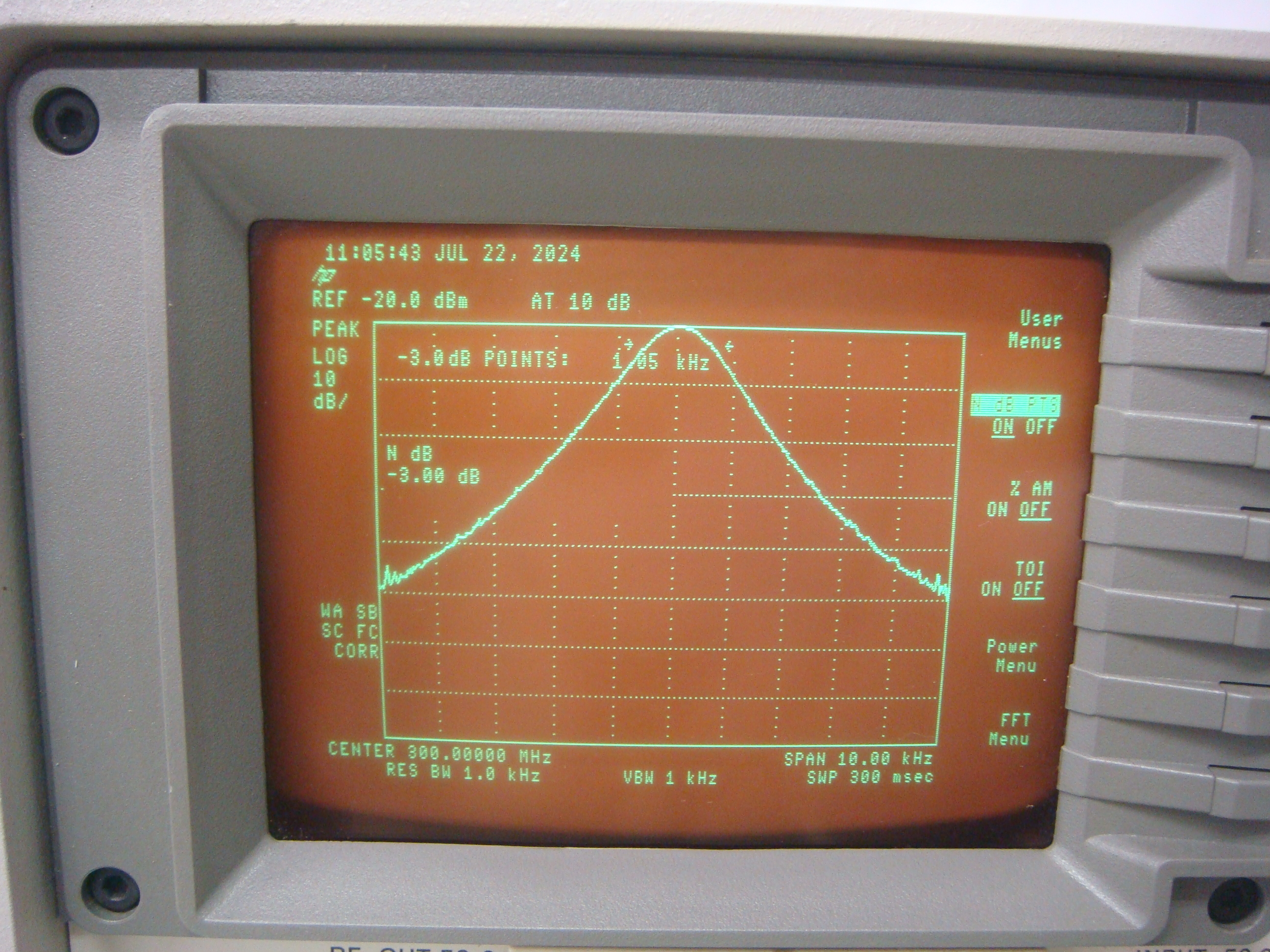

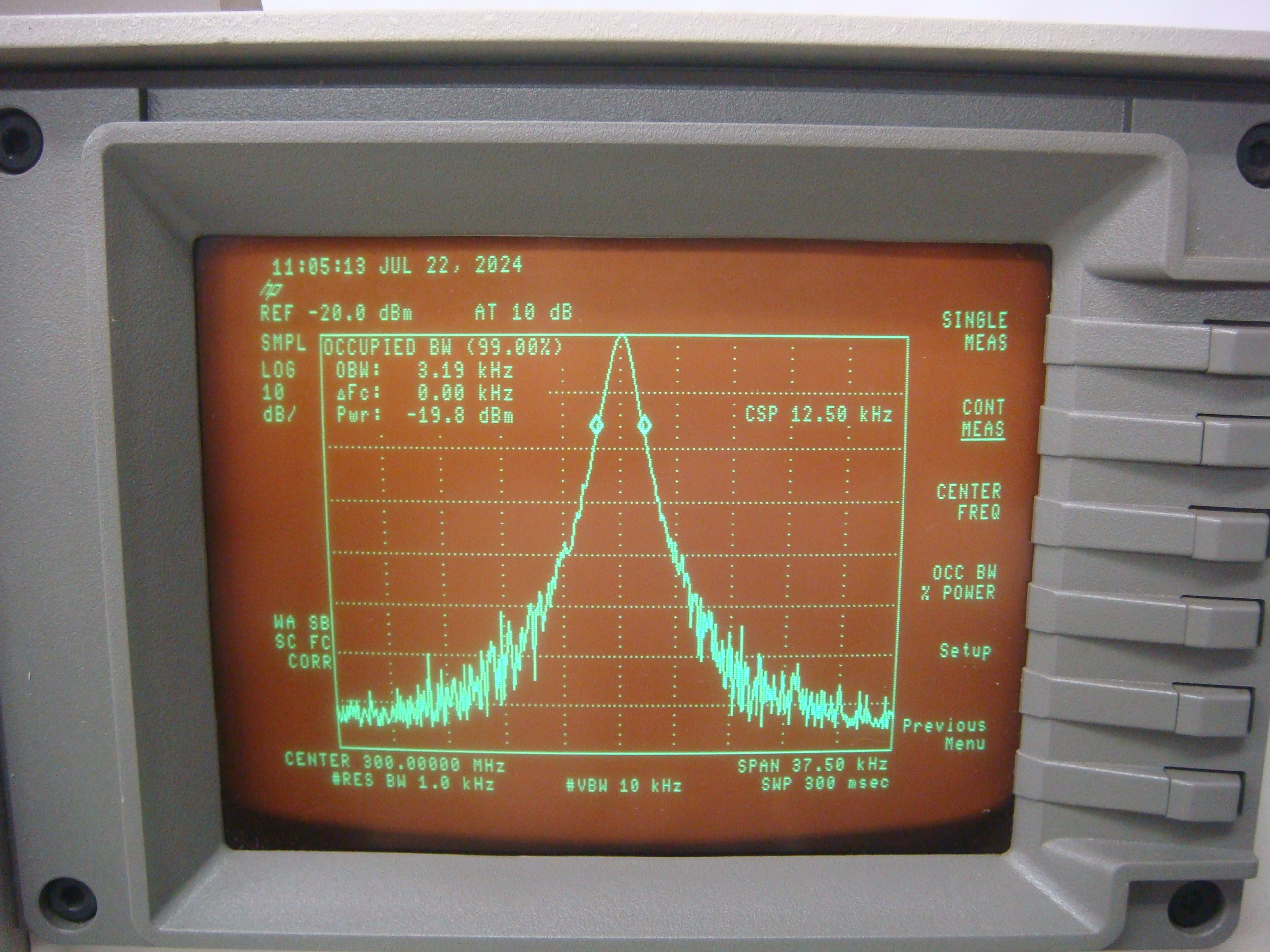

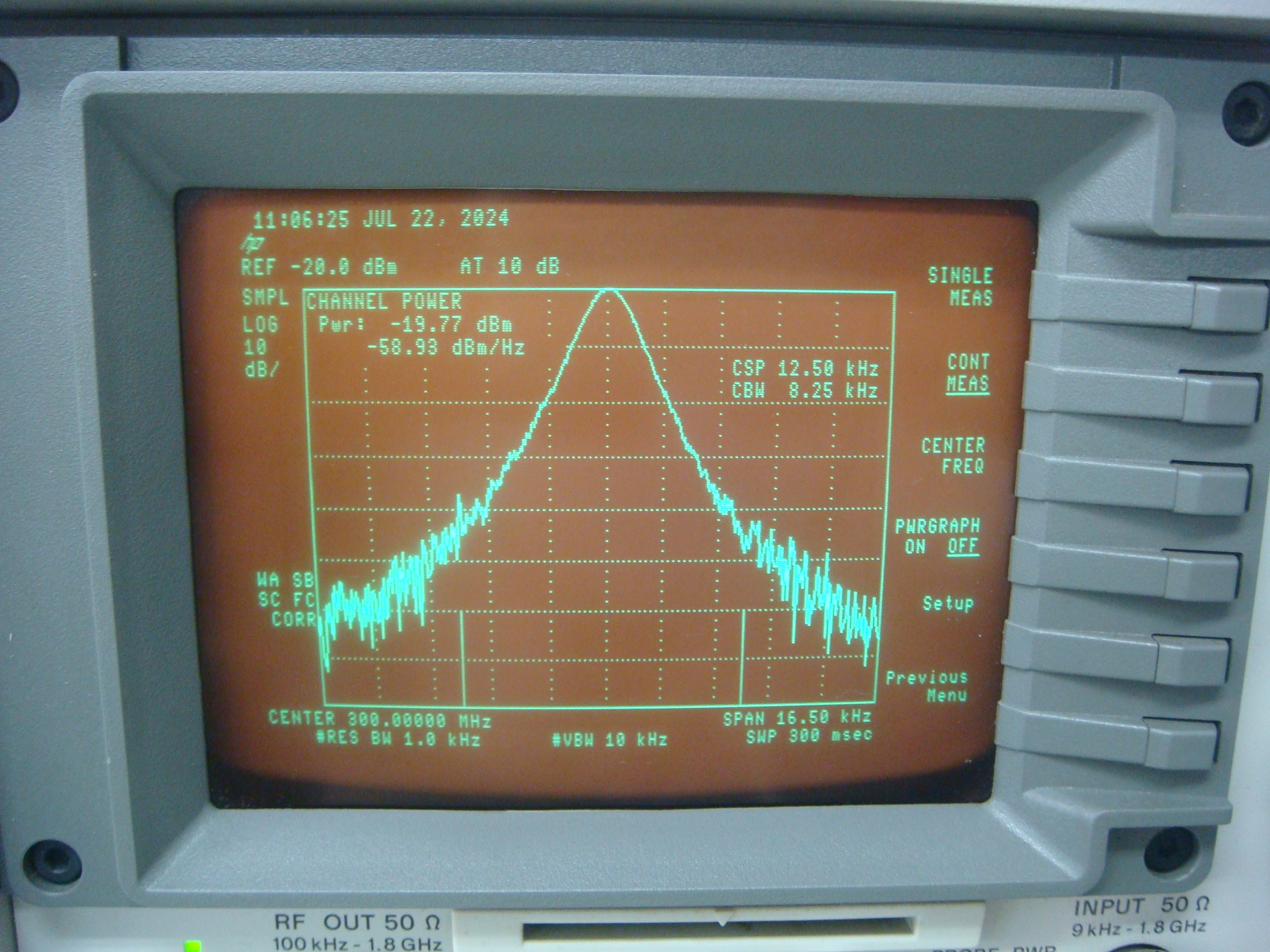

FFT 3dB/6dB-BW LimitLine 99%PowerBW AM% 3rdOrdermeasure Delta P-P
Data Storage (nominal)
Internal: 24 traces or 32 states External: 50 traces, 8 states
OPT041:GP-IB

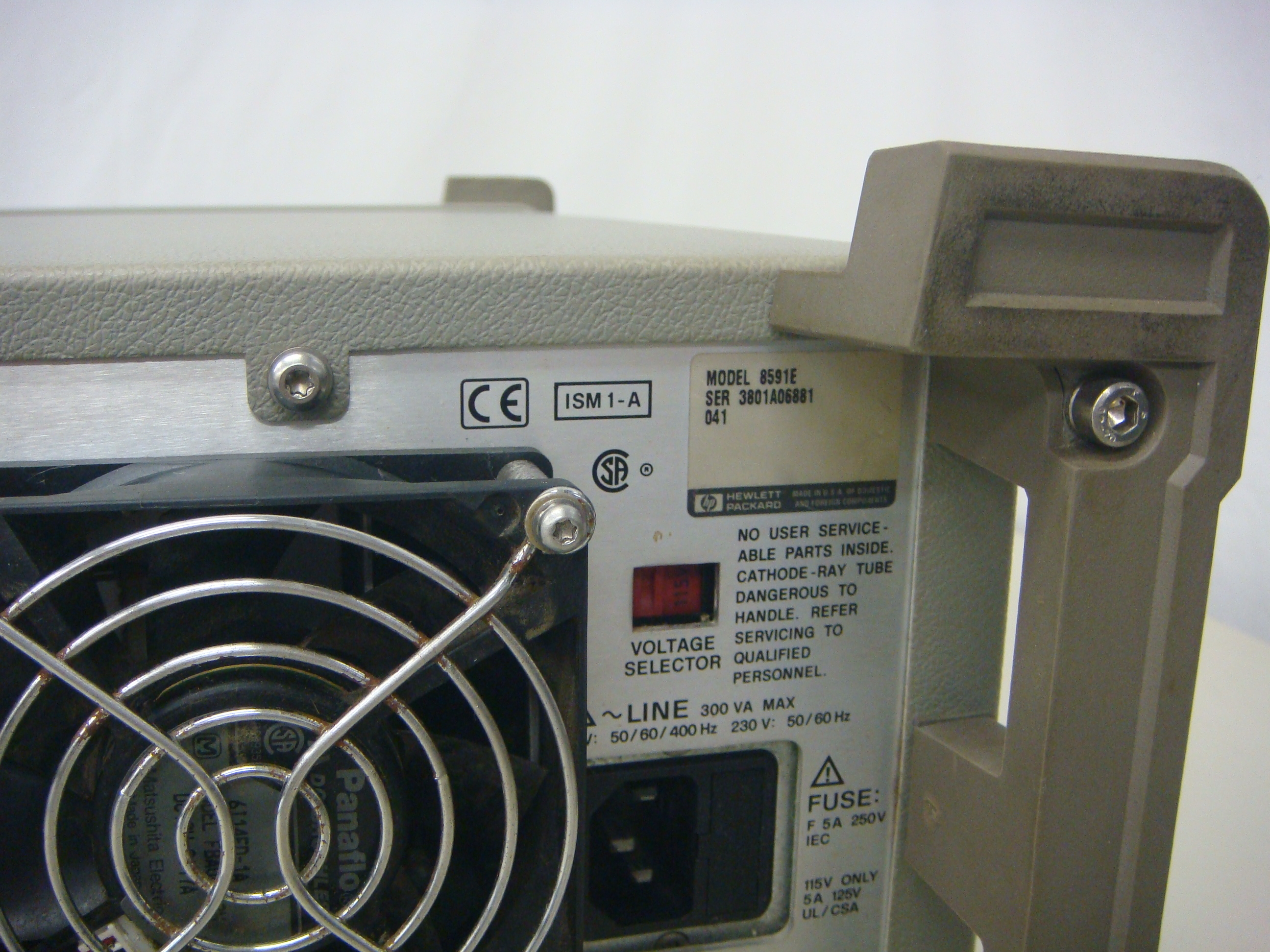

AC 90-264V 180W 325W163H427D 14.5Kg
